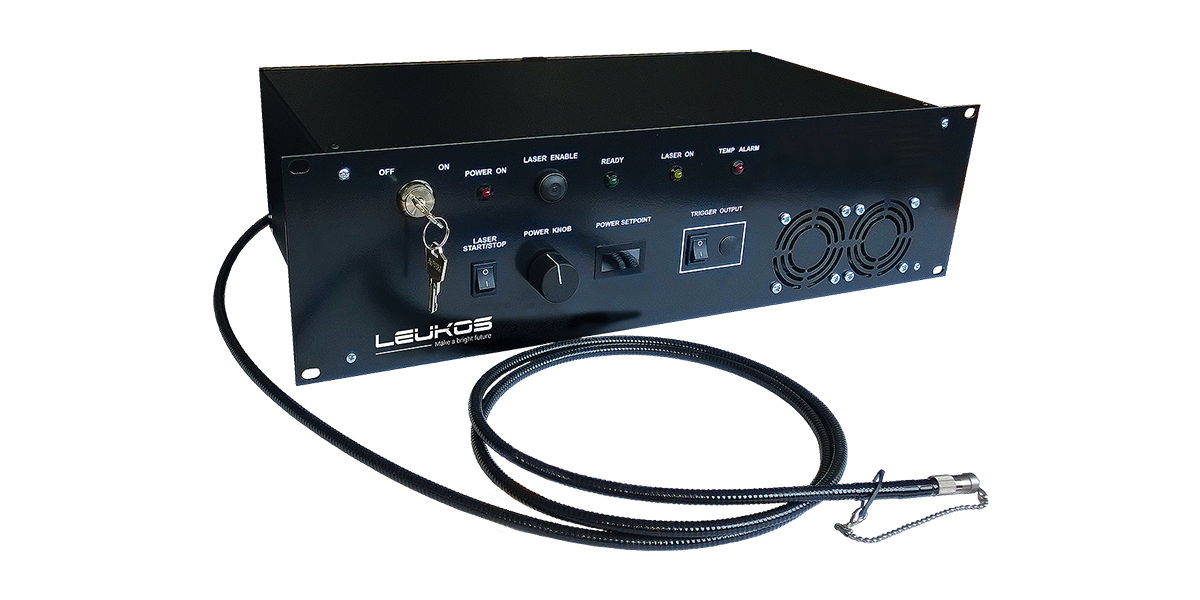

Disco
FEATURES
- Broad spectrum from UV (350 nm) to near IR
- Externally triggered laser via TTL signal input
- Spatially singlemode gaussian TEM00
- Sub-nanosecond pulses (0.8 up to 1.1 ns)
- Low timing jitter < 20 ns (pulse to pulse)
- kHz repetition rate
APPLICATIONS
- Spectroscopy (TAS, CEAS…)
- High resolution imaging (OCT, confocal microscopy)
- Flow cytometry
- LIDAR
- Optical components testing
SPECIFICATIONS
| LEUKOS DISCO | DISCO-2 | DISCO-2-UV |
|---|---|---|
| Spectral bandwidth minimum | < 420 nm | < 350 nm |
| Spectral bandwidth maximum | > 2400 nm | > 2200 nm |
| Repetition rate | 2 kHz | 2 kHz |
| Timing jitter | < 20 ns | < 20 ns |
| Pulse width | 0.7-1.3 ns | 0.7-1.3 ns |
| Total average power | > 10 mW* | > 5 mW* |
| Spatial profile | Singlemode TEM00 | Singlemode TEM00 |
* Including ASE.
